TB Series

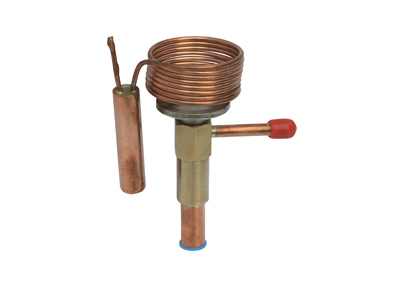

TB series thermal expansion valve is a kind of thermal expansion valve with non-adjustable static superheat. It is used for small-scale refrigeration compressors to achieve system throttling control. contact us- Technical Parameters
- Accessories
- Download
Characteristics
- TB type thermal expansion valve is a kind of thermal expansion valve with non-adjustable static superheat. It is used for small-scale refrigeration compressors to realize system throttling control.- The TB type thermal expansion valve has a compact overall structure and an ODF brass pipe welding interface.- Safe working pressure is 2.8MPa.Other Technical Data

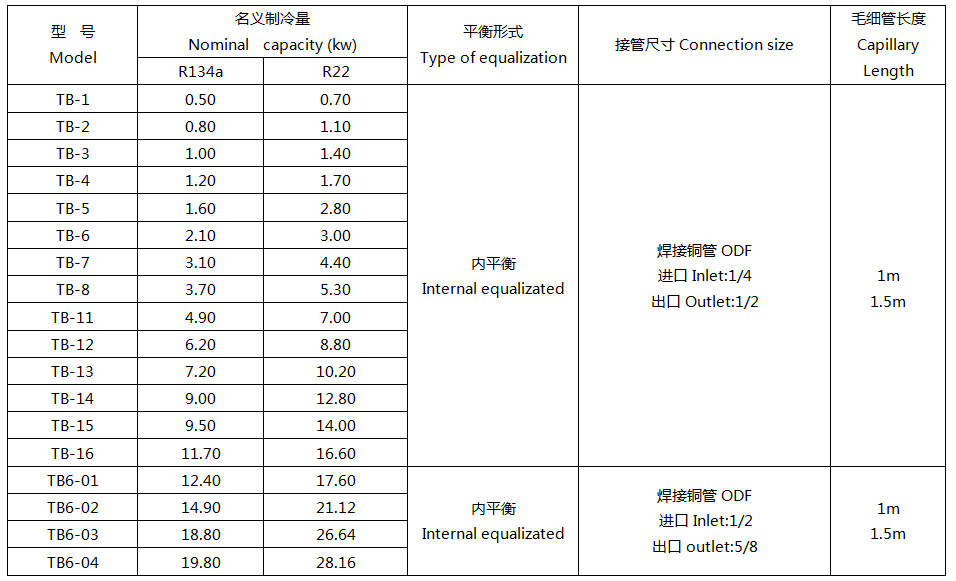

Note: Condensation temperature is +38°C, evaporation temperature is +5°C; R134a: ΔP = 0.46Mpa, R22: ΔP = 0.69MPa.

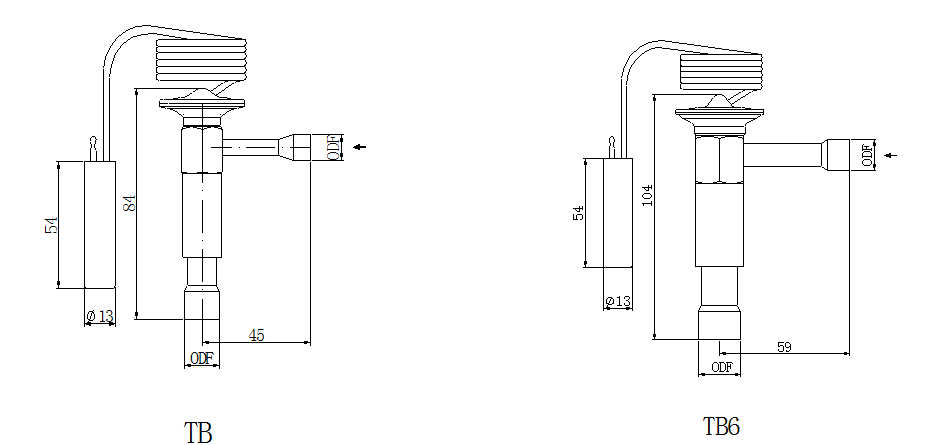

Dimensions
