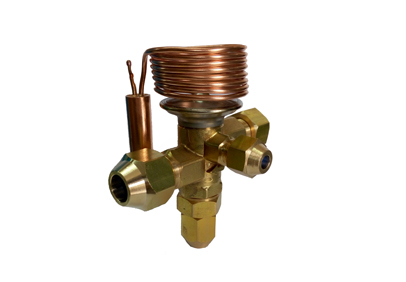

CRT CRF Series
CRT CRF series thermal expansion valve is suitable for a wide range of applications such as air conditioning, commercial refrigeration, transportation air conditioning and refrigeration. contact us- Technical Parameters
- Accessories
- Download
Characteristics
- MOP (motor overload protection) function is available.- Suitable for media such as R22, R134a, R407c, R404A/R507, R410A, R290 refrigerants.- CRT/CRF is internally balanced; CRTE/CRFE is external balanced.- Please contact with shangheng for special requirements.General
CRT CRF series thermal expansion valve is suitable for a wide range of applications such as air conditioning, commercial refrigeration, transportation air conditioning and refrigeration.Superheat regulation
The factory superheat is set to 3.5K and the static superheat adjustment range is 1 to 8K. Rotate the adjusting lever counterclockwise to reduce the superheat by 1K.Other Technical Data
Note: The nominal cooling capacity is based on the evaporating temperature te=4.4°C, the condensing temperature tc=40°C, and the pre-valve refrigerant temperature t1=38°C.Note: For other operating characteristics and specifications, please contact the company.
Dimensions
Note: There are special requirements for the length of the capillary tube or inlet and outlet fittings. Contact our company.
Dimensions
